EATON T0-3-8341/I1/SVB-SW

SKU: 7050

In Stock

Used
Sourced from working environment

Excl. VAT: €35.00 (1 available)

Incl. VAT: €42.35

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 6 months

Used 3 months

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

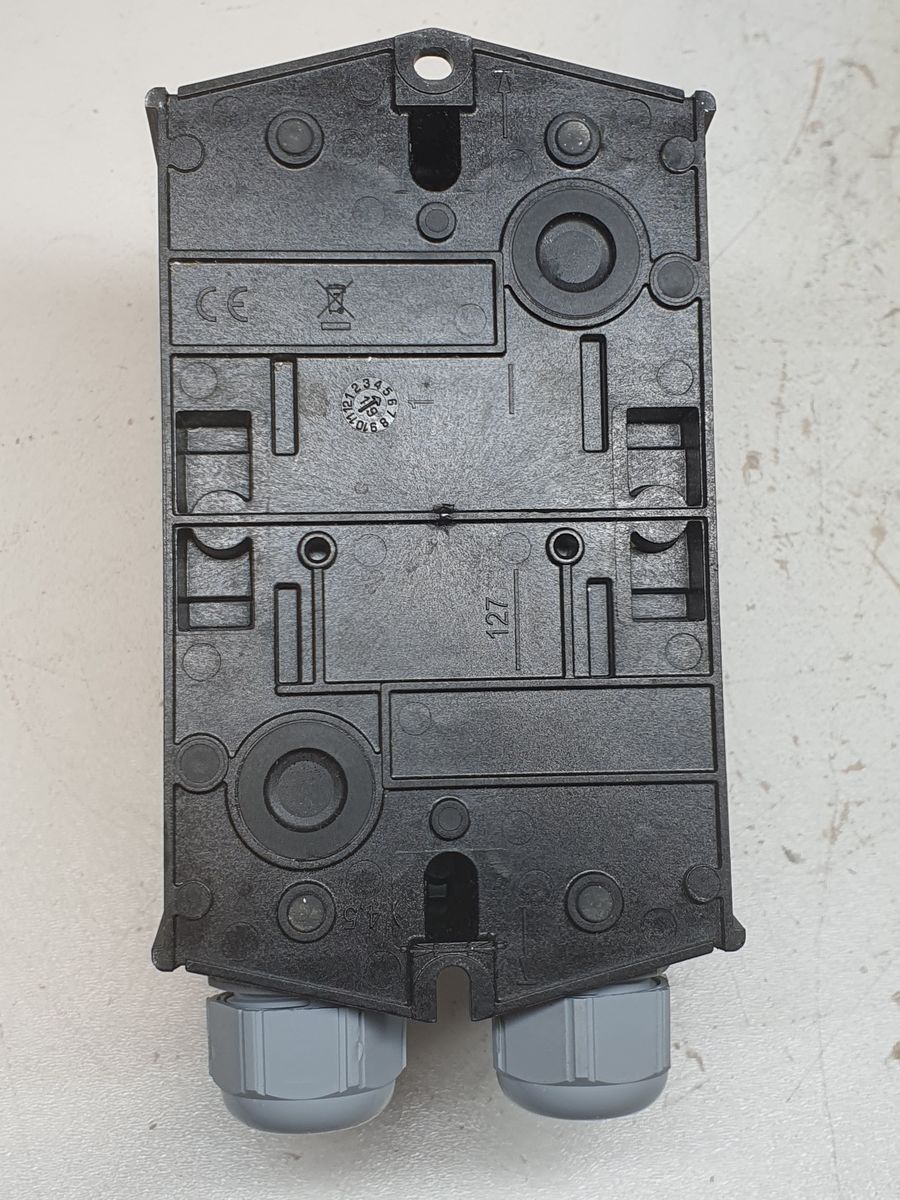

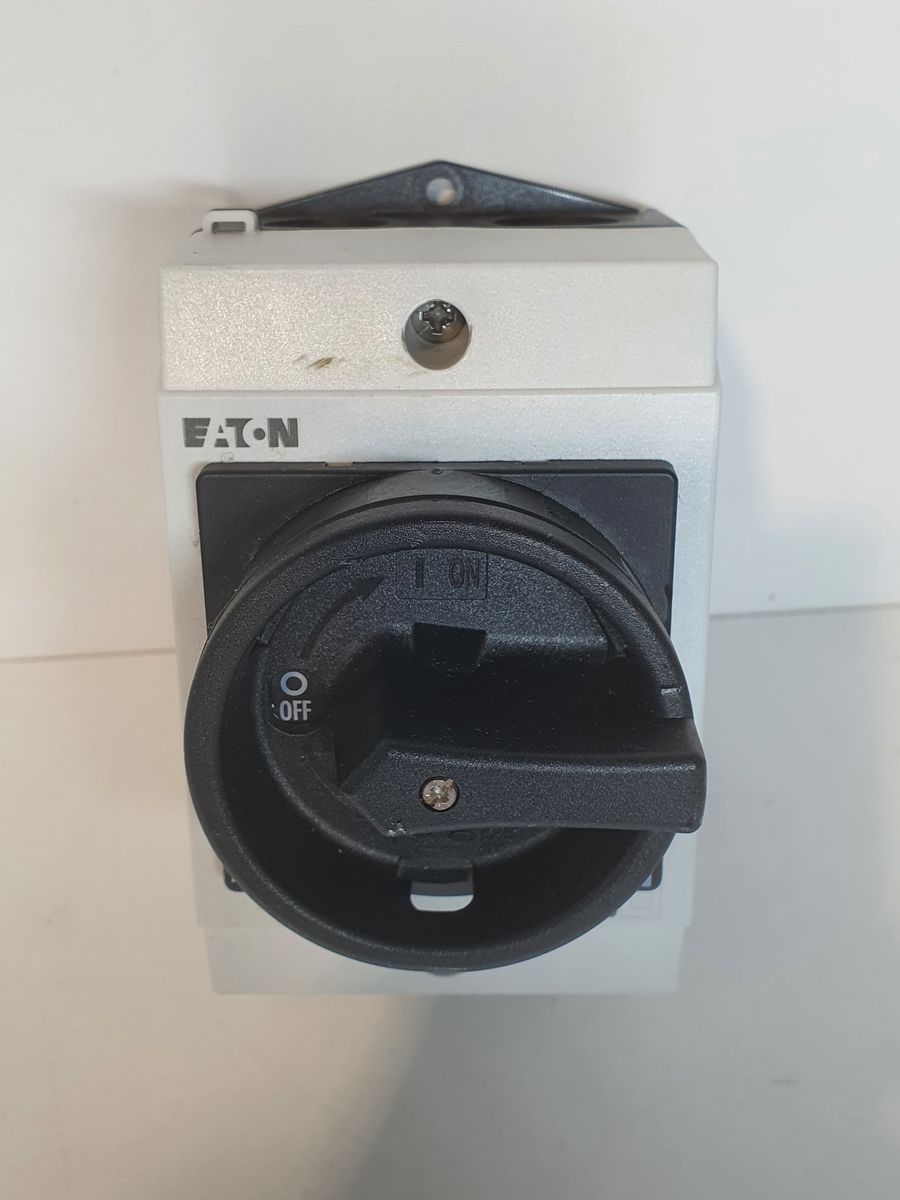

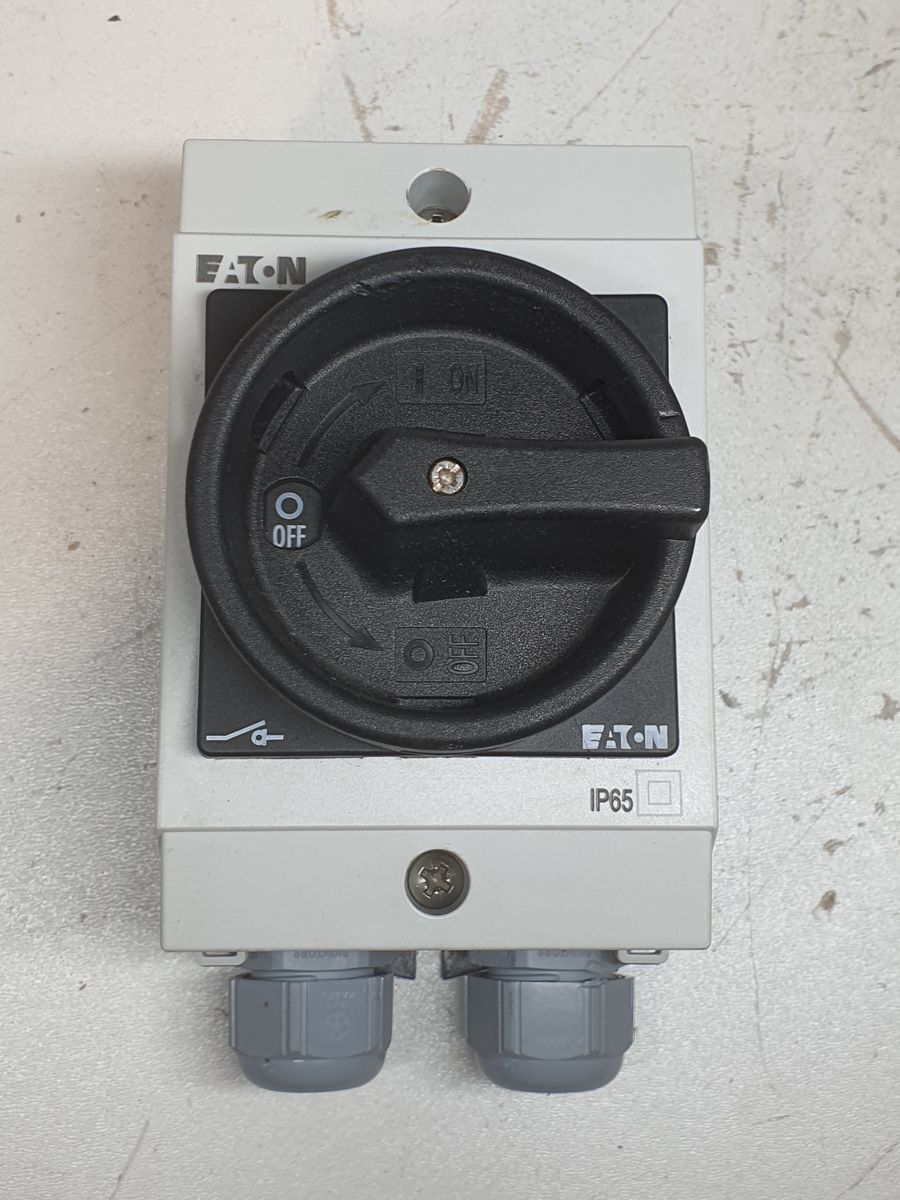

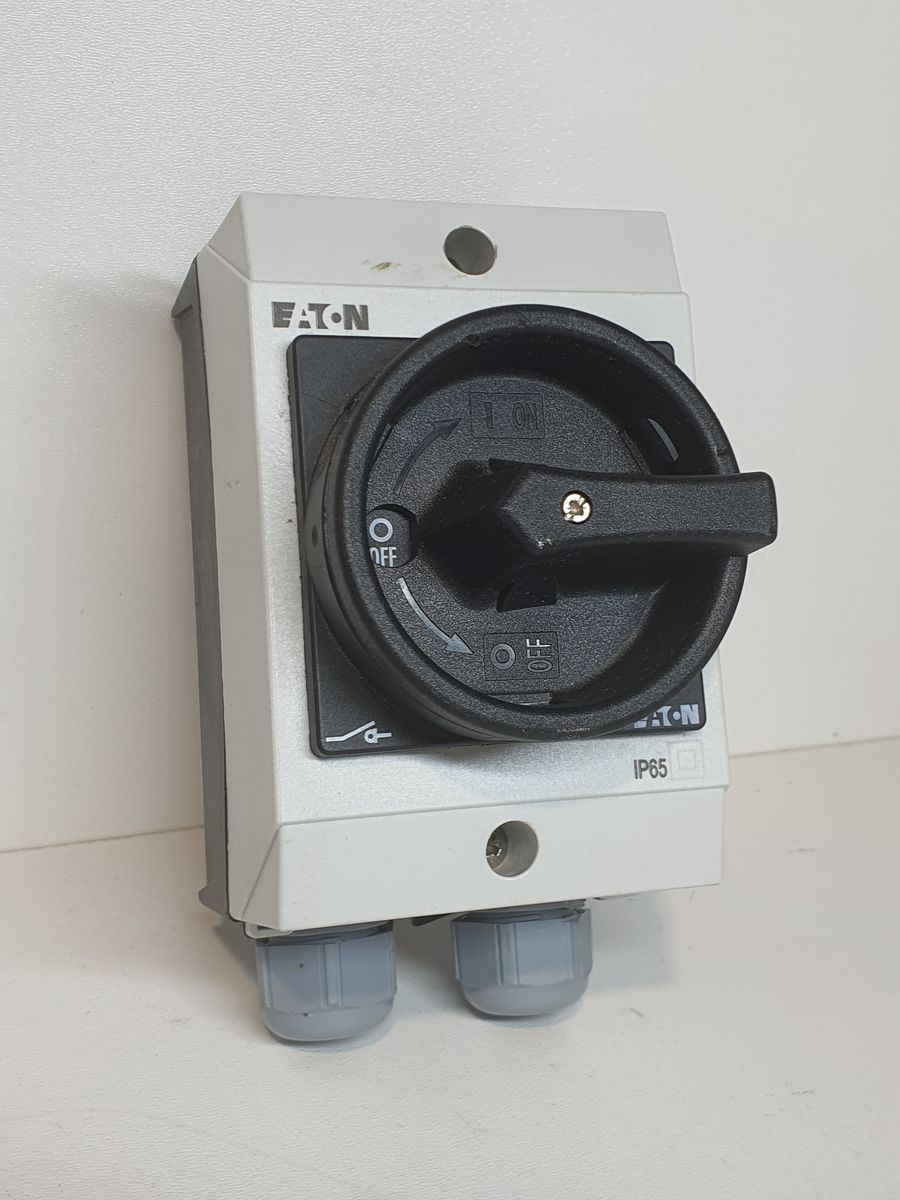

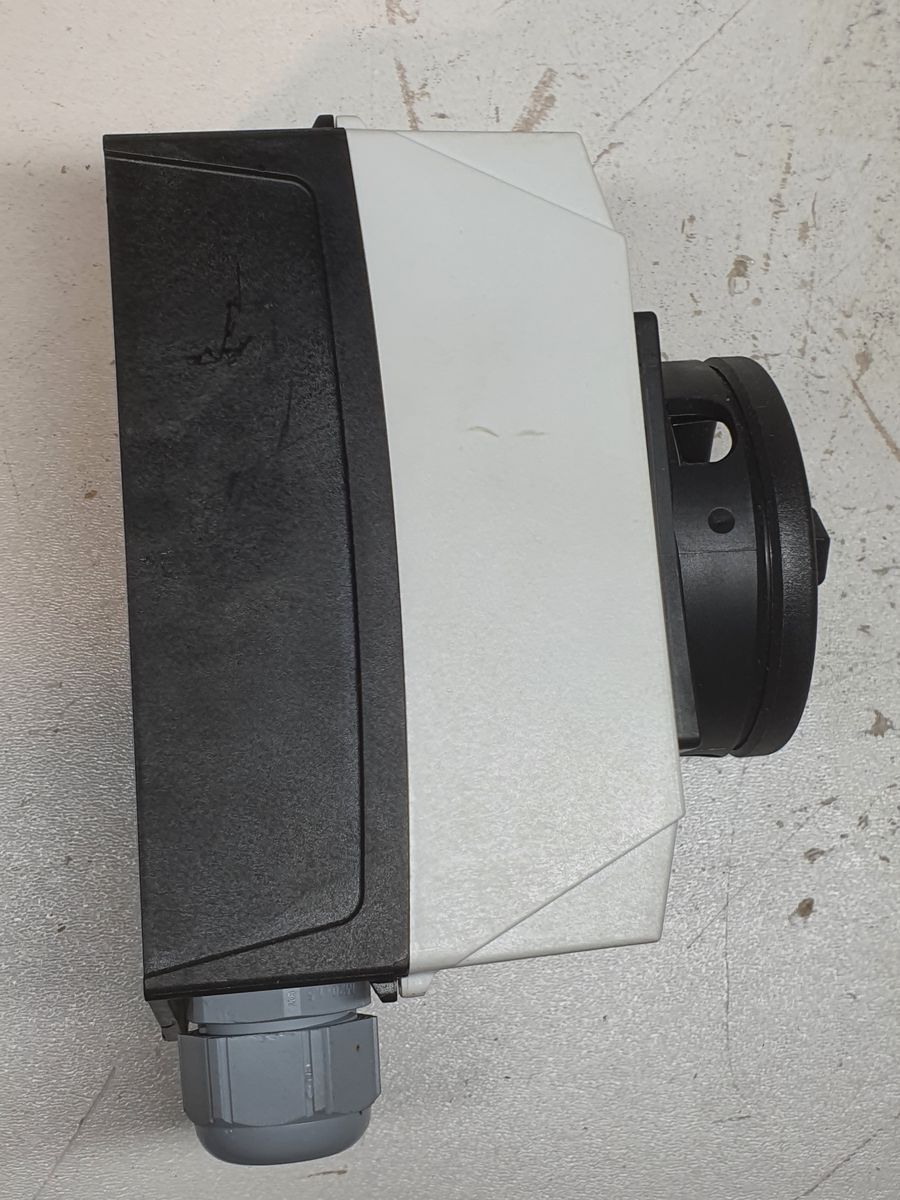

EATON T0-3-8341/I1/SVB-SW

Eaton series T0 Main Switch, T0, 20 A, Surface Mounted, 3 switching chamber(s), 5-pole, HOLD function, with black rotary handle and plate

General specifications

Product name	Eaton series T0 main switch
Catalog number	222670
EAN	4015082226701
Product length/depth	137 mm
Product height	130 mm
Product width	80 mm
Product weight	0.324 kg
Certification	IEC/EN 60204 IEC/EN 60947 VDE 0660 IEC/EN 60947-3
Comments on catalog	Nominal short-duration current (Icw) for a period of 1 second
Model code	T0-3-8341/I1/SVB-SW

Features & Functions

Features	Version as main switch Version as working switch
Equipped with:	Black rotary handle and retaining ring
Features	STOP function Lockable
Number of poles	5
