Valves

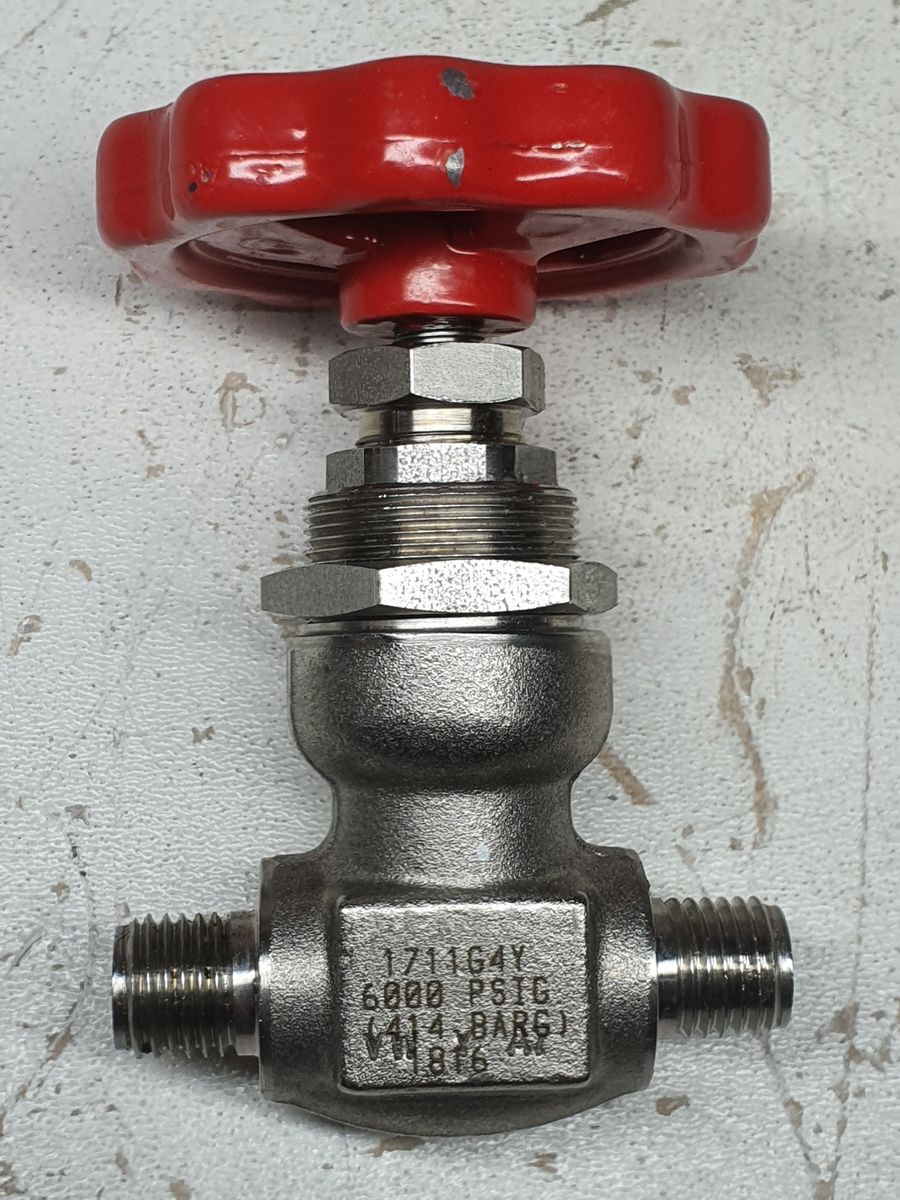

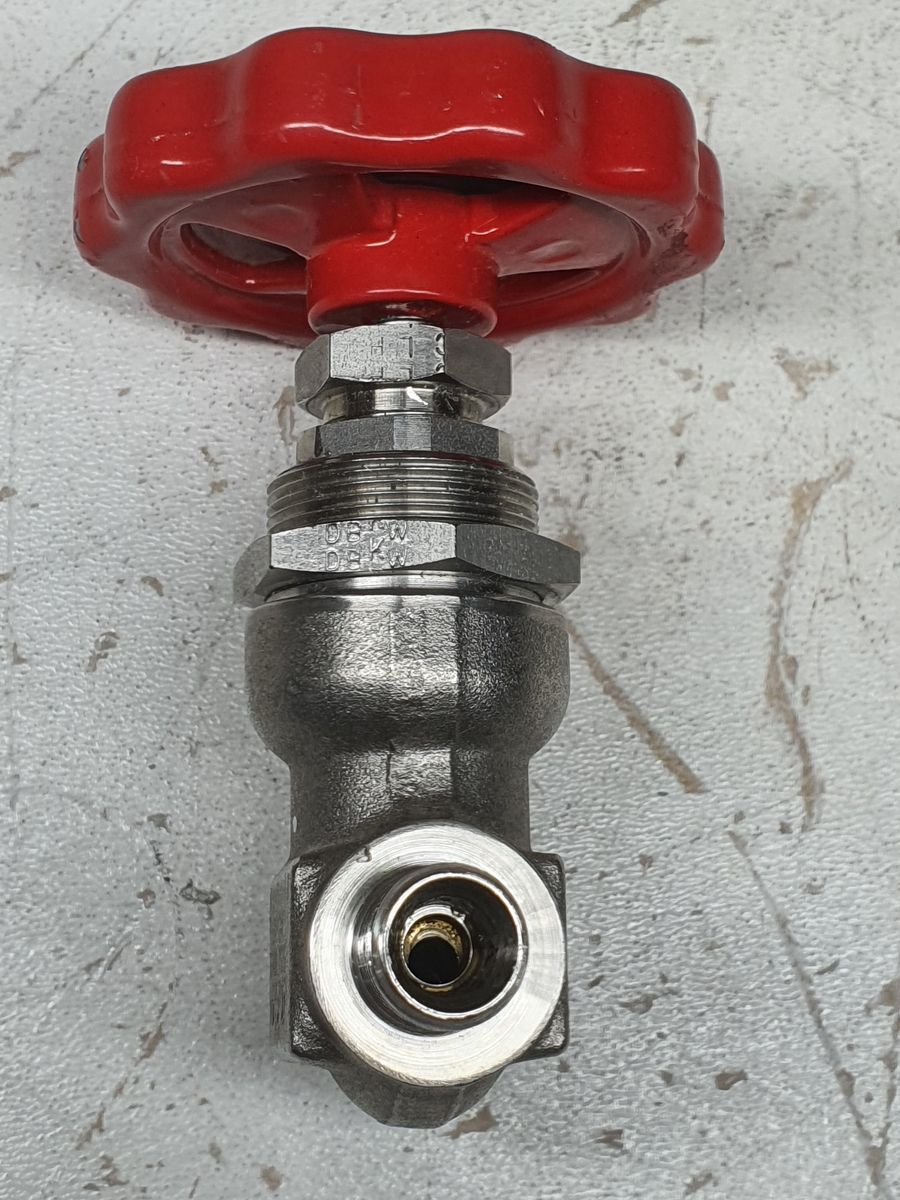

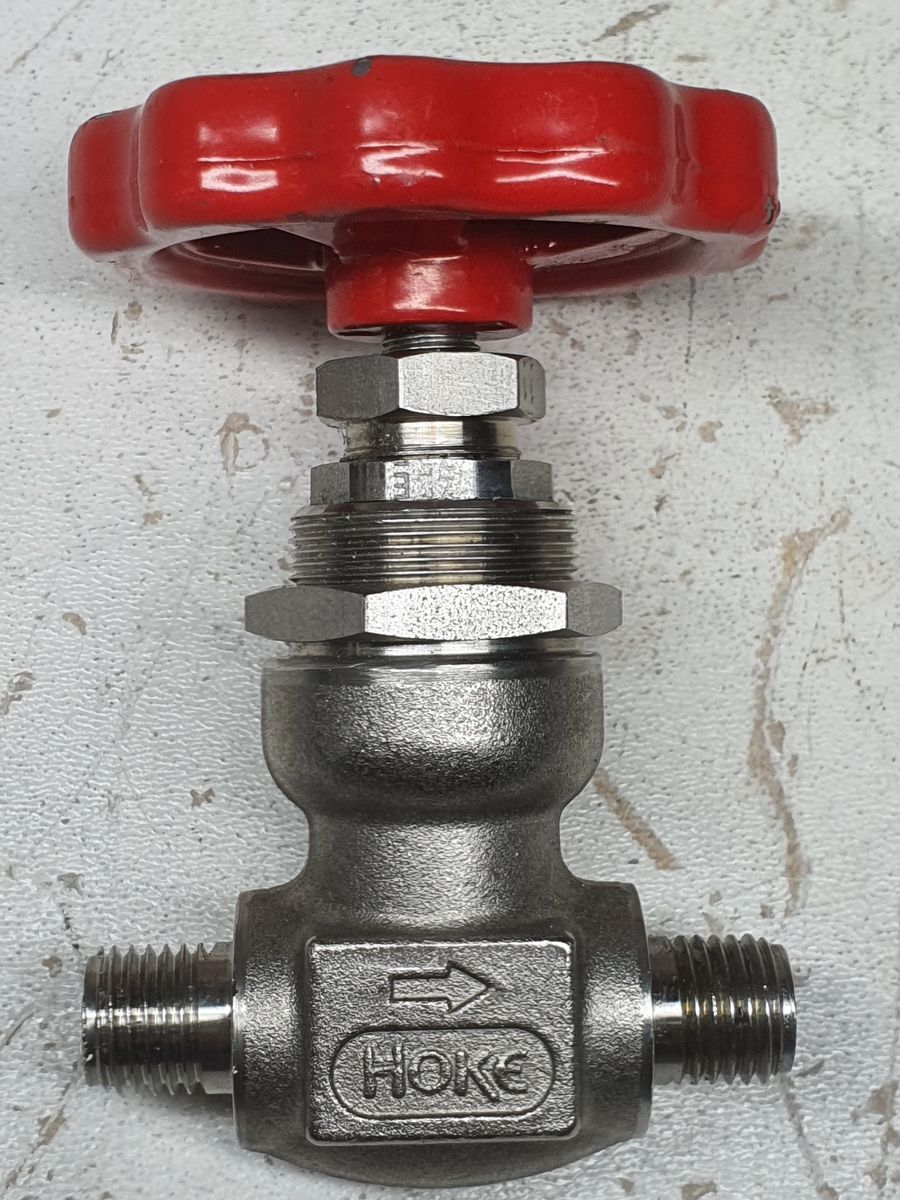

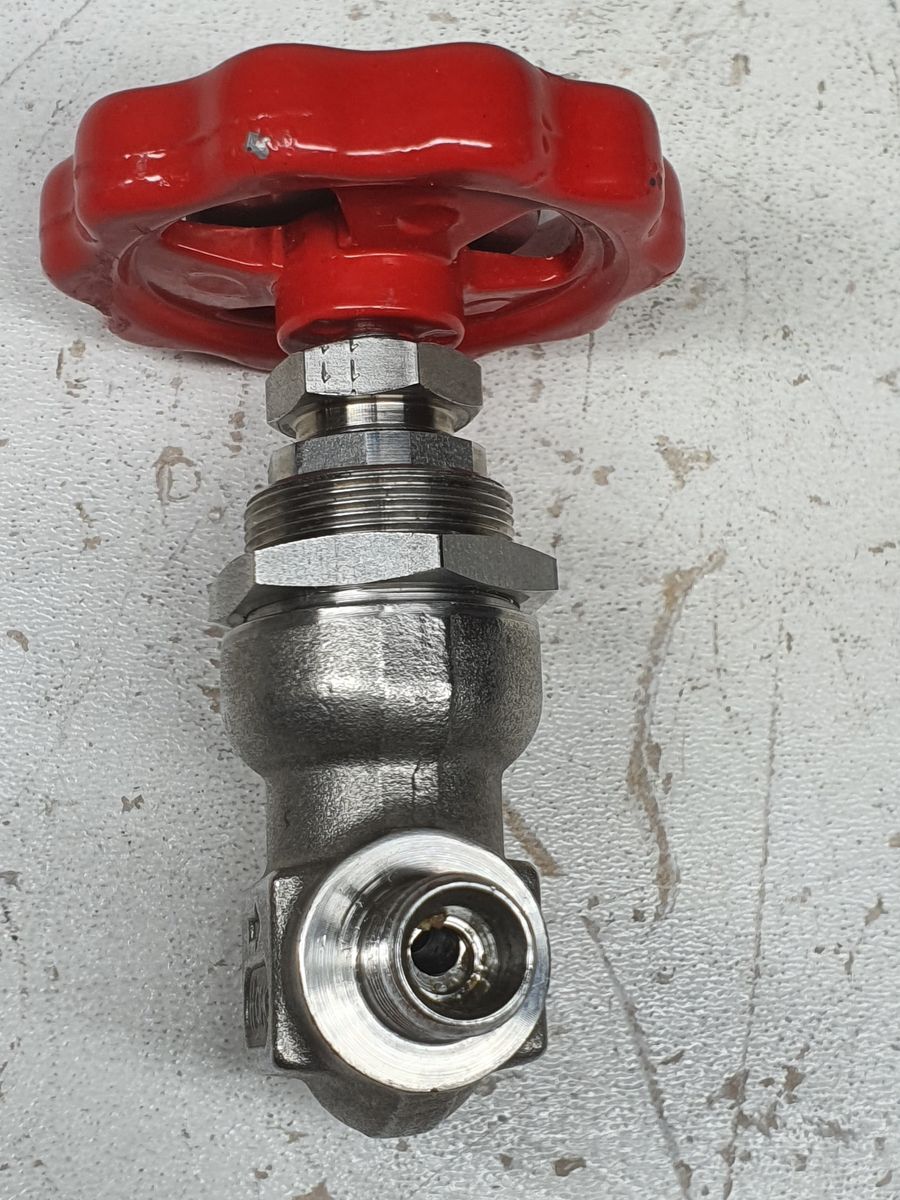

Hoke 1711G4Y

SKU: 2019

In Stock

Used
Sourced from working environment

Excl. VAT: €35.00 (1 available)

Incl. VAT: €42.35

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 3 months

Used DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

SPECIFICATIONS:

INLET A	1/4" Gyrolok
OUTLET B	1/4" Gyrolok
D	3 in76 mm
E	2 1/16 in52 mm
F	2 1/8 in54 mm
H	1/2 in13 mm
H1	1 1/16 in27 mm
Stem Tip	Metal stem tip for service to +450° F (+232° C)
Body Material	316 Stainless Steel
Maximum Operating Pressure	6000 psig at 70° F (414 Bar at 21° C)
Operating Temperature Range	-65° to +450° F (-54° to +232° C)
Orifice	0.187 in4.70 mm
Cv Factor	0.31
Panel Hole	22.6 mm57/64 in
Panel Thickness	6.4 mm1/4 in
Features & Benefits	Safety Lock nut secures packing nut to prohibit accidental removal Long cycle life Packing below stem threads prevents fluid from contacting the stem threads Non-rotating hardened 17-4PH stainless steel, Monel or replaceable PCTFE stem tip is combined with a hardened 450 stainless steel - or Monel thread gland to reduce galling Helps eliminate fugitive emissions Dyna-Pak packing provides a leak-tight seal with low operating torque Reliability All valves are tested for bubble-tight leakage at both seat and packing Installation variety Broad selection of male NPT, female NPT, and HOKE Gyrolok fractional or metric tube fitting connections Panel mounting Panel mounting is standard on all models Special High Tolerance NPT ThreaD
