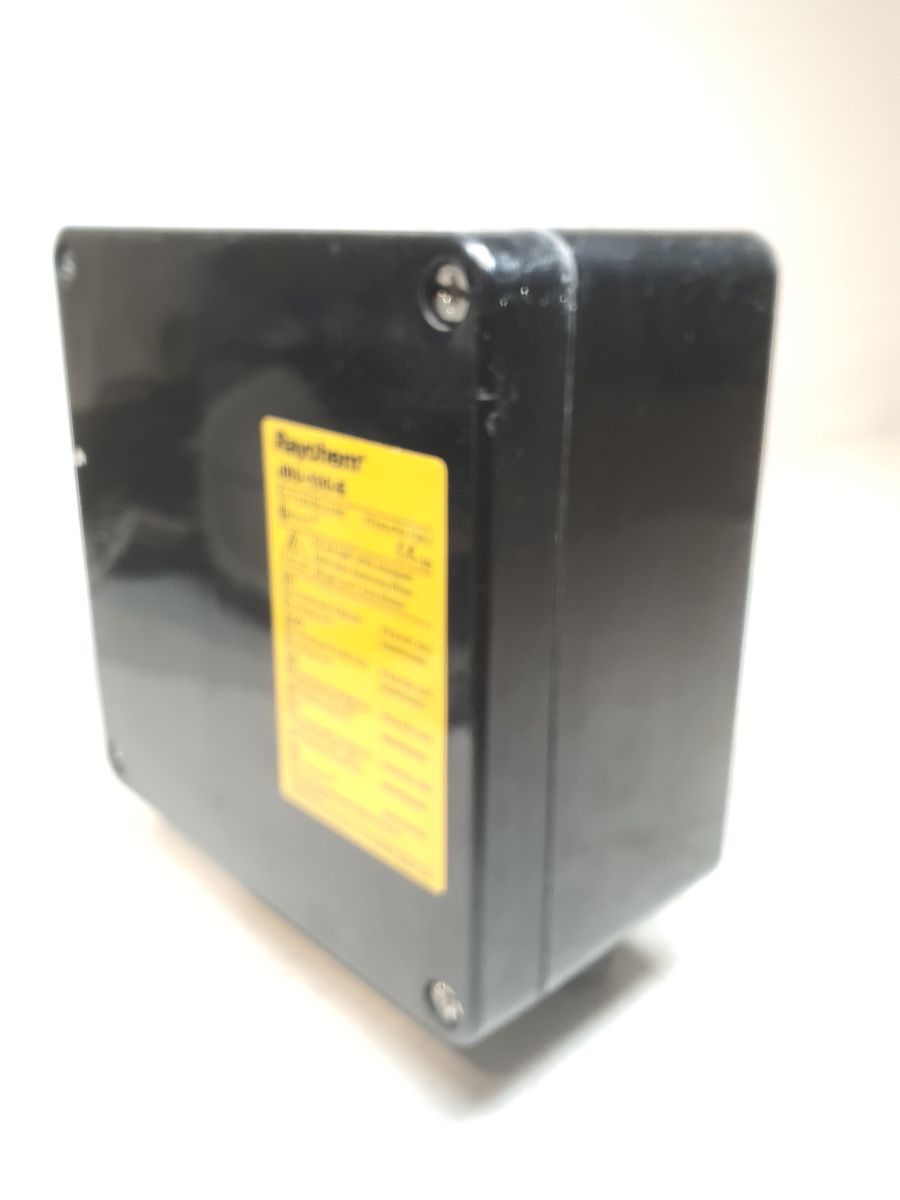

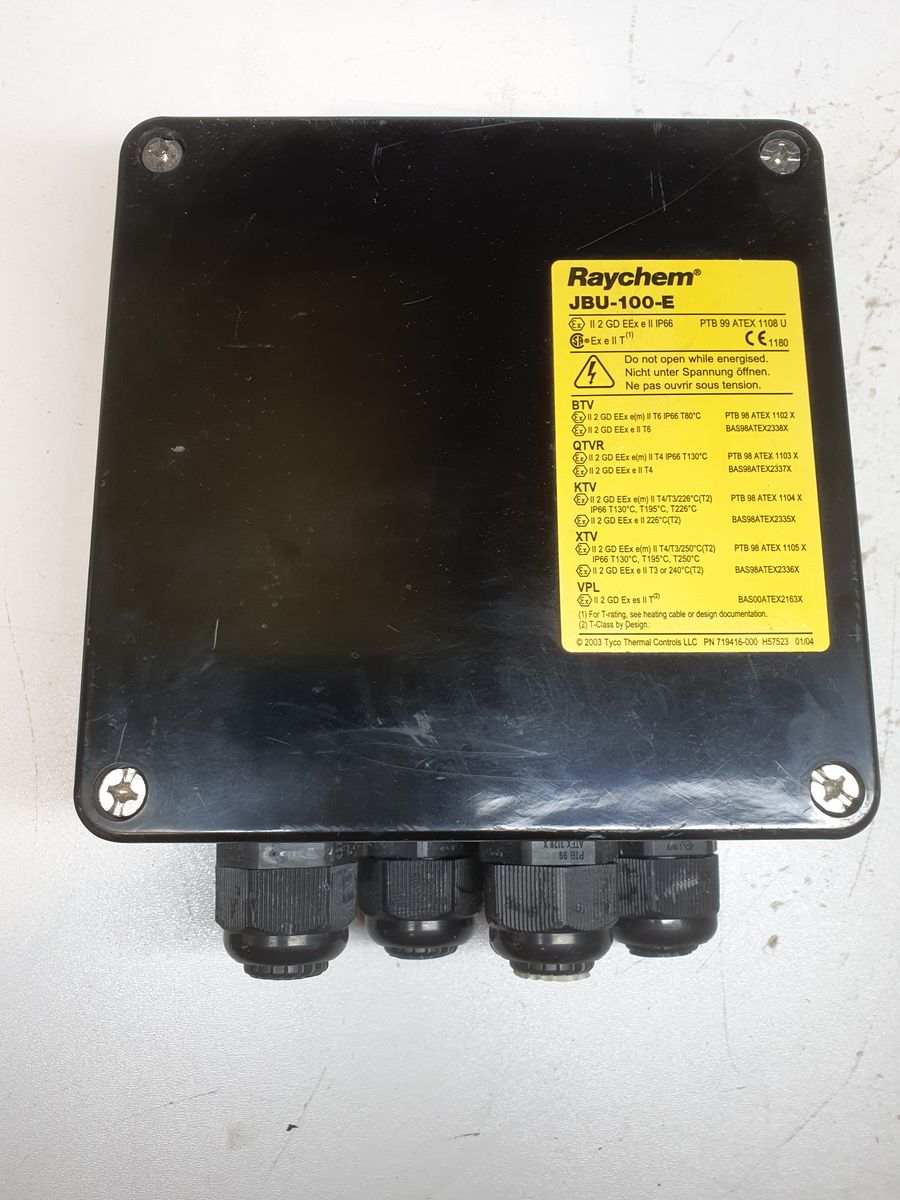

Raychem JBU-100-E
SKU: 7052
Out of Stock
| Parameter | Specification |
|---|---|
| Brand | Raychem |
| Series | JBU-100 |
| Model | JBU-100-E |
| Equipment Type | Junction Box (Heat Tracing System) |
| Number of Connections | 4 |
| Number of Terminals | 6 |
| Assembly Method | On the board |
| Material | Glass fiber reinforced polymer |
| Colour | Black |
| Halogen-Free | Yes |
| Nominal Voltage | 480 V AC |
| Operating Temperature | -50°C to +56°C |
| Maximum Conductor Size | 10 mm² |
| Input Type | Cable |
| IP Rating | IP66 |
| Explosion Protection | ATEX Certified |
| ATEX Zones | Zone 1, Zone 2 (Gas); Zone 21, Zone 22 (Dust) |

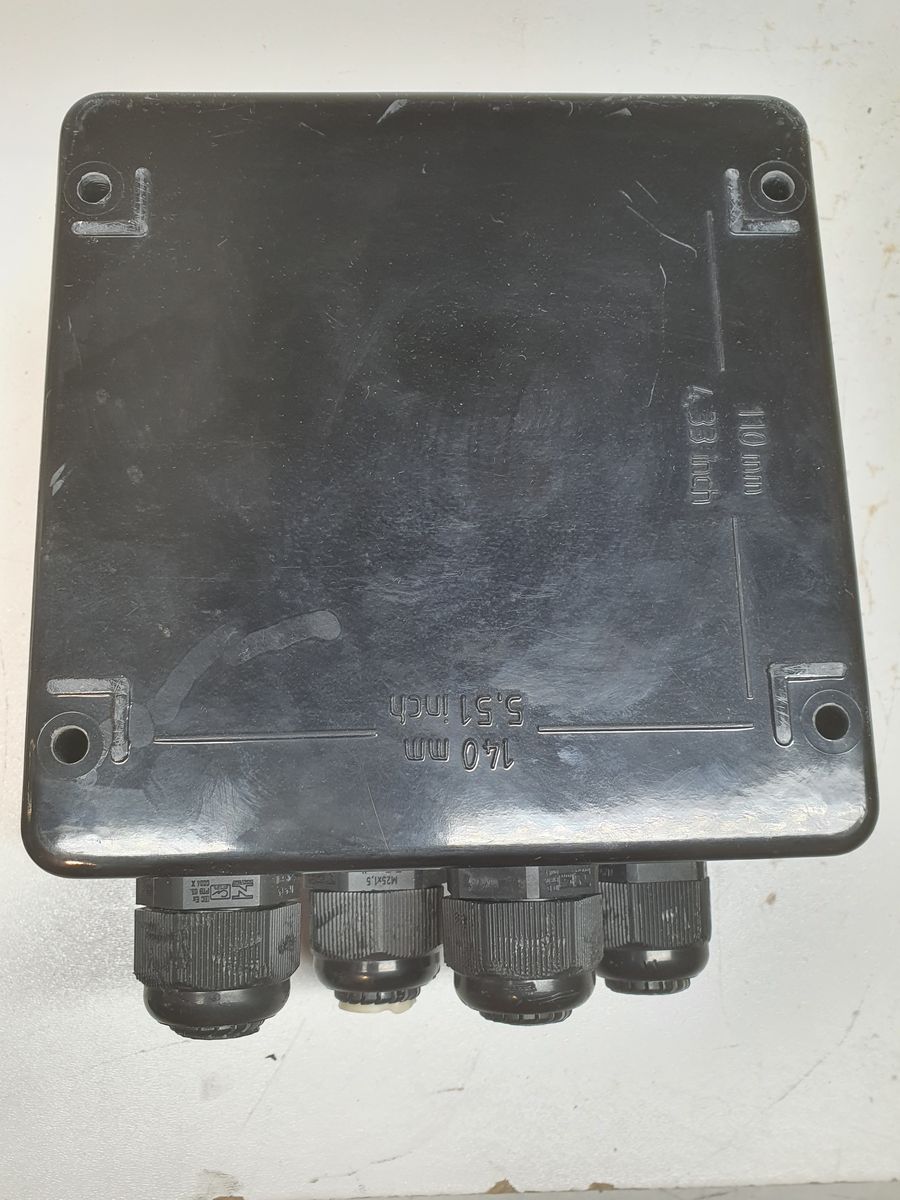

| Dimensions (L × W × D) | 160 × 140 × 90 mm |
| Signal Lamp | Not included |
×
![]()
