Swagelok KHF1GJM818A20000

SKU: 8036

In Stock

Used
Sourced from working environment

Price on request

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished DOA

Used DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

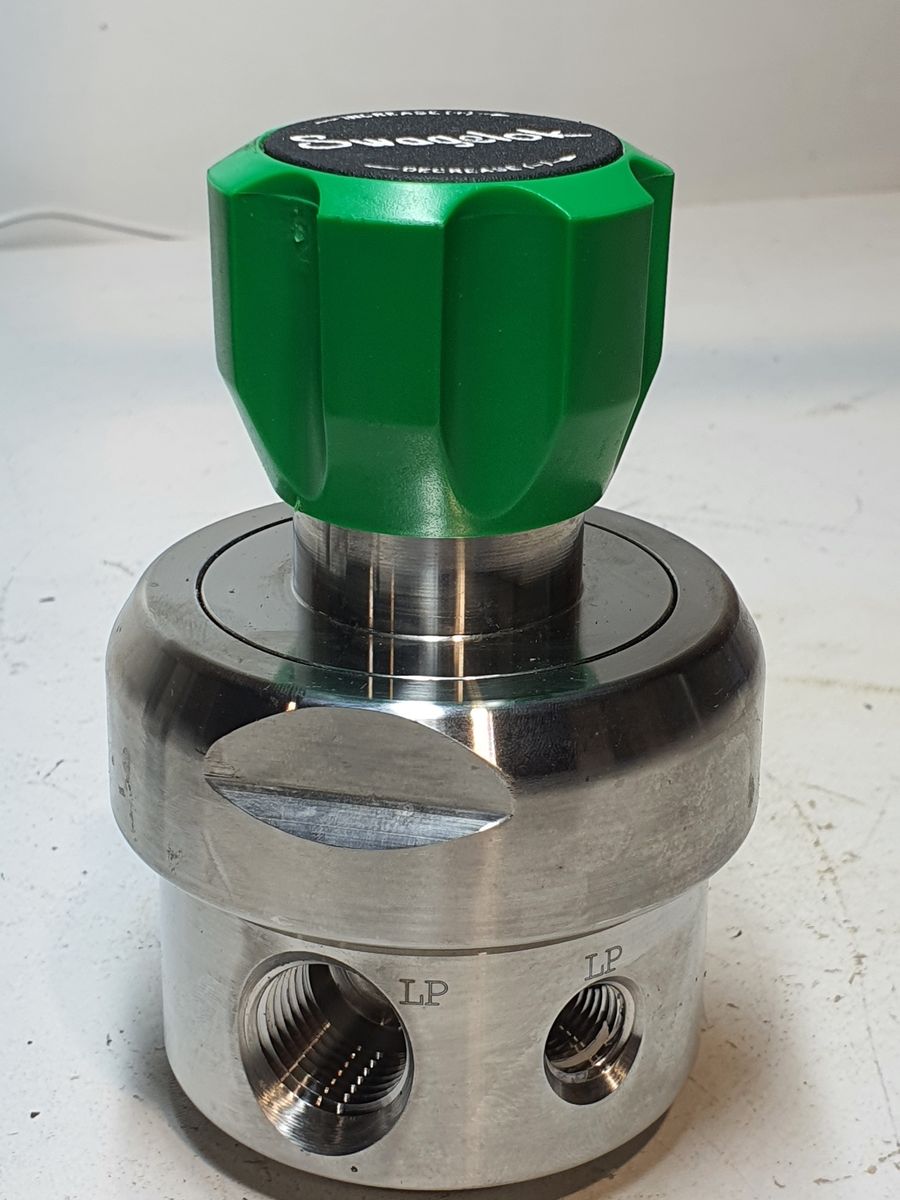

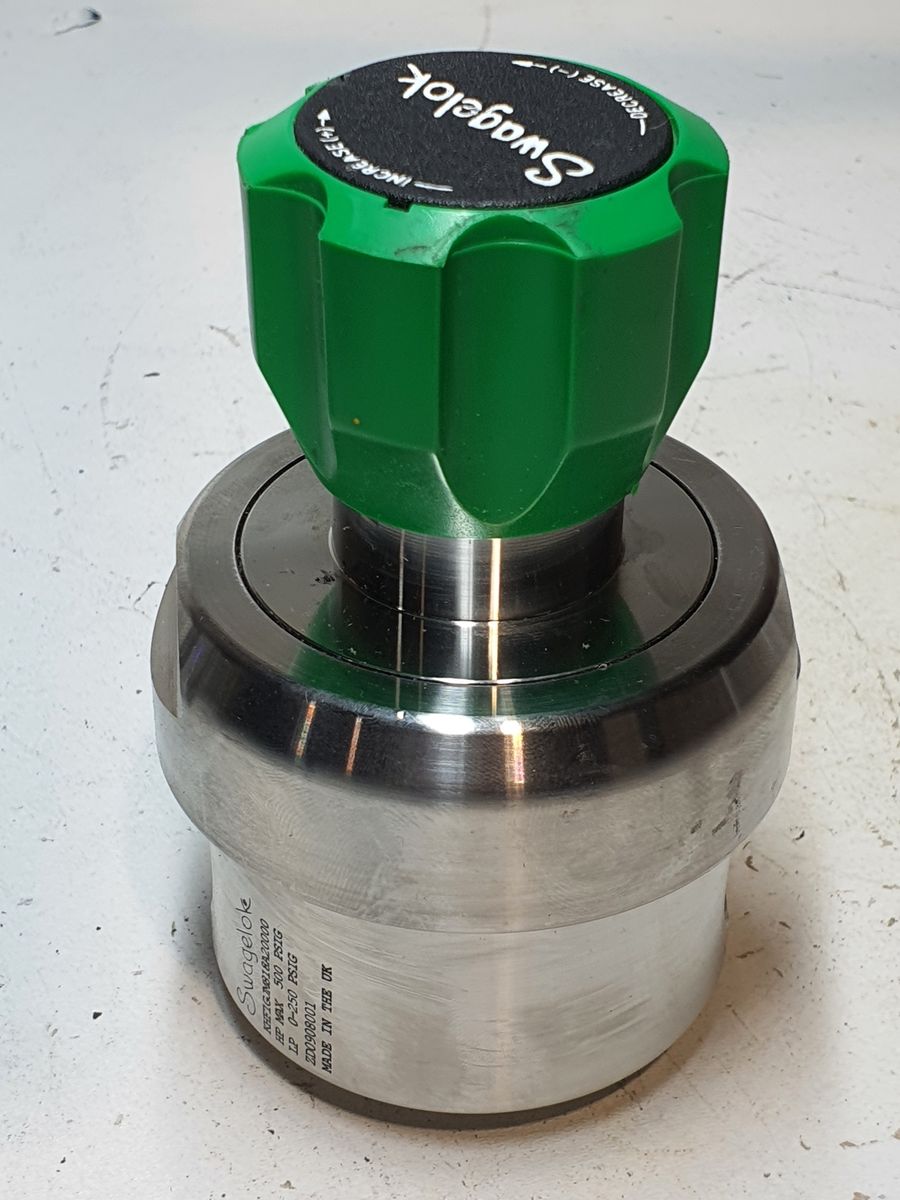

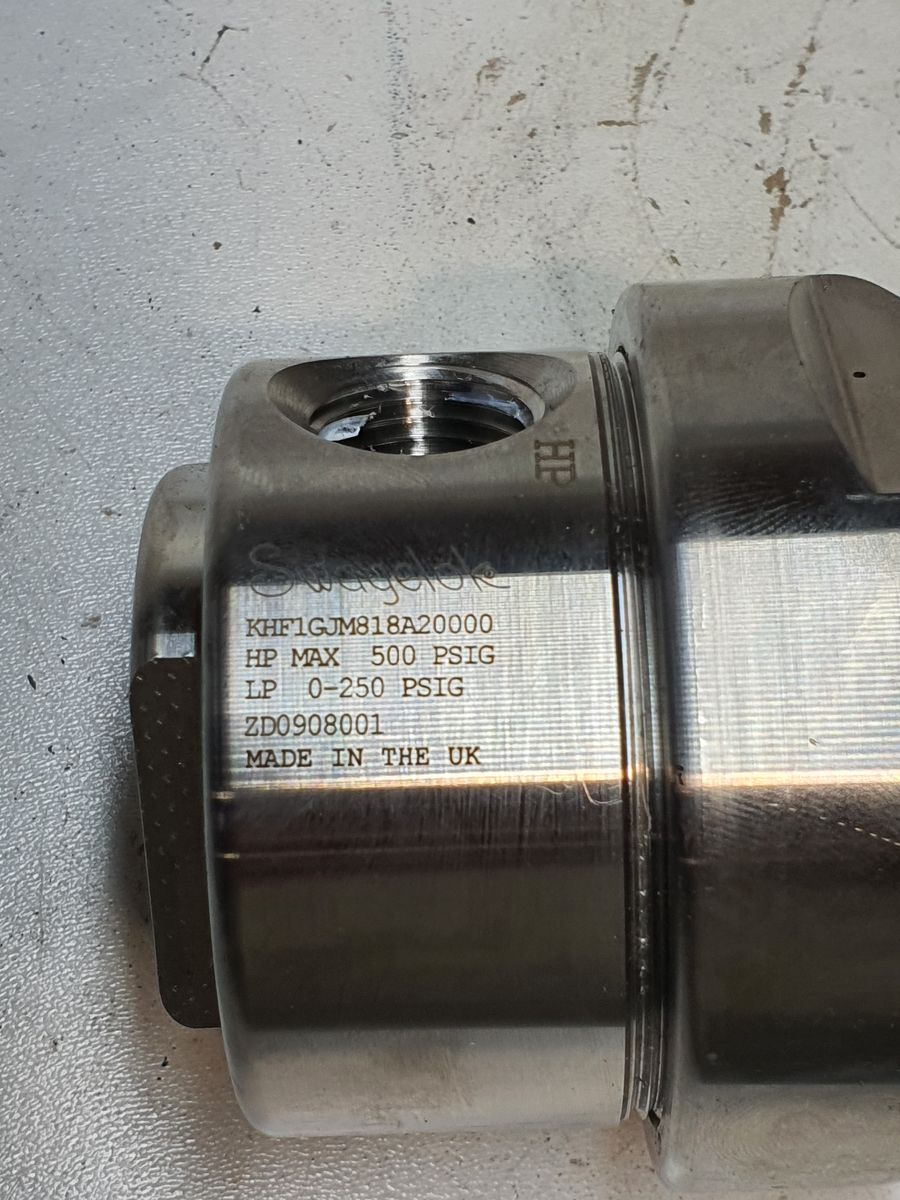

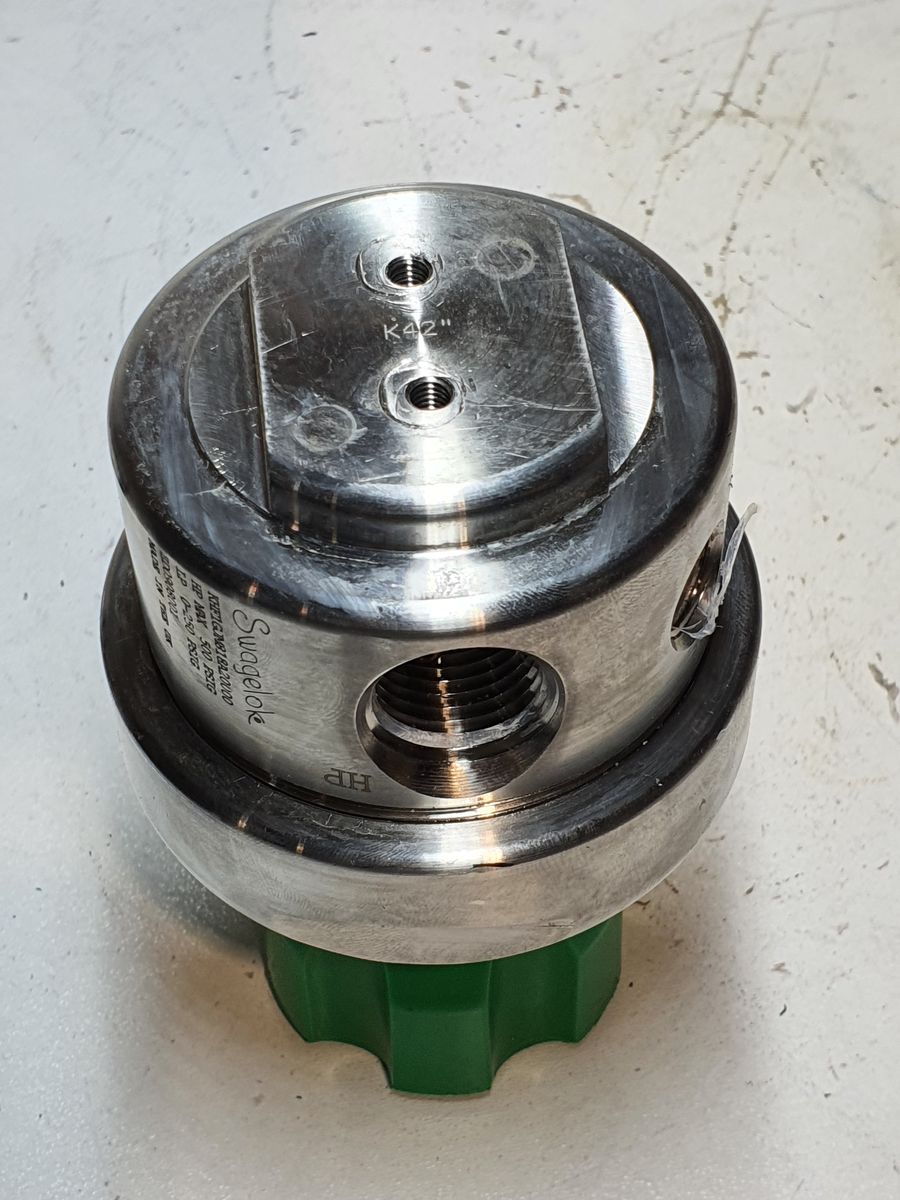

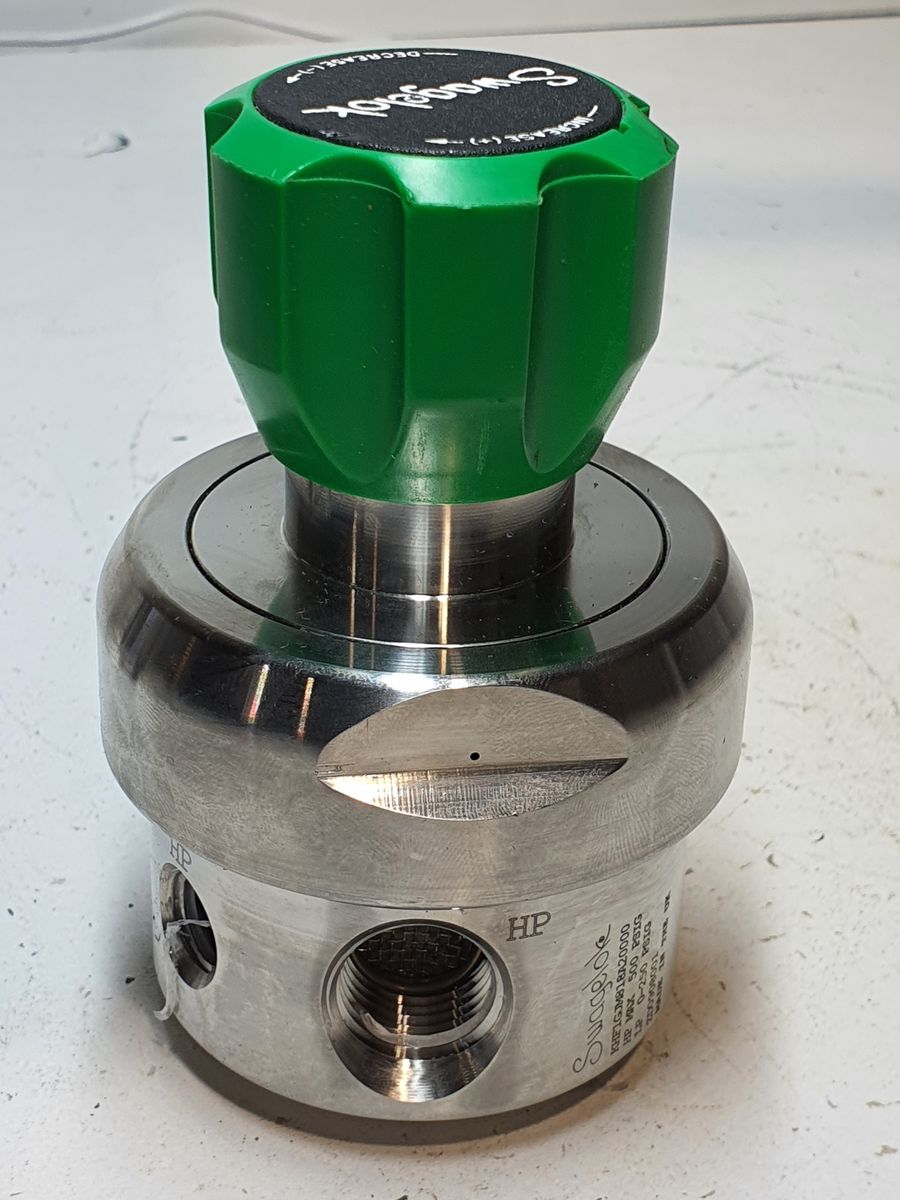

SWAGELOK KHF1GJH818A20000 HIGH FLOW/SENSITIVITY PR REGULATOR

Specification table

Parameter	Details
Manufacturer	Swagelok
Model / Part Number	KHF1GJH818A20000
Product Type	High Flow / High Sensitivity Pressure Regulator
Function	Pressure Reducing Regulator
Inlet Pressure Rating	Up to 34.4 bar (500 psig)
Outlet / Controlled Pressure Range	0–250 psig (0–17.2 bar)
Maximum Inlet Pressure (HP Max)	500 psig
Body Material	Stainless Steel
Port Size — Inlet	1/2″ FNPT
Port Size — Outlet	1/2″ FNPT
Gauge Port Size	1/4″ FNPT
Flow Capacity	High Flow (optimized for high Cv / sensitivity)
Operating Temperature Range	Typical (stainless steel regulator standard range)
Regulator Configuration	“H” Configuration
Mounting / Orientation	Inline
Weight (Approx.)	[Not specified — typical for similar regulators: ~2–3 lbs]
Features	High sensitivity, high flow capacity, stainless steel construction, gauge taps
