EC-BASIC-T
Regulators

Systemair EC-BASIC-T

SKU: 8047
In Stock

Select Condition

Condition
Price
Quantity
Action
New
Excl. VAT: €90.00 (1 available)
Incl. VAT: €108.90
1
Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Warranty Information

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Warranty Periods by Condition
New 12 months
Refurbished DOA
Used DOA
We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

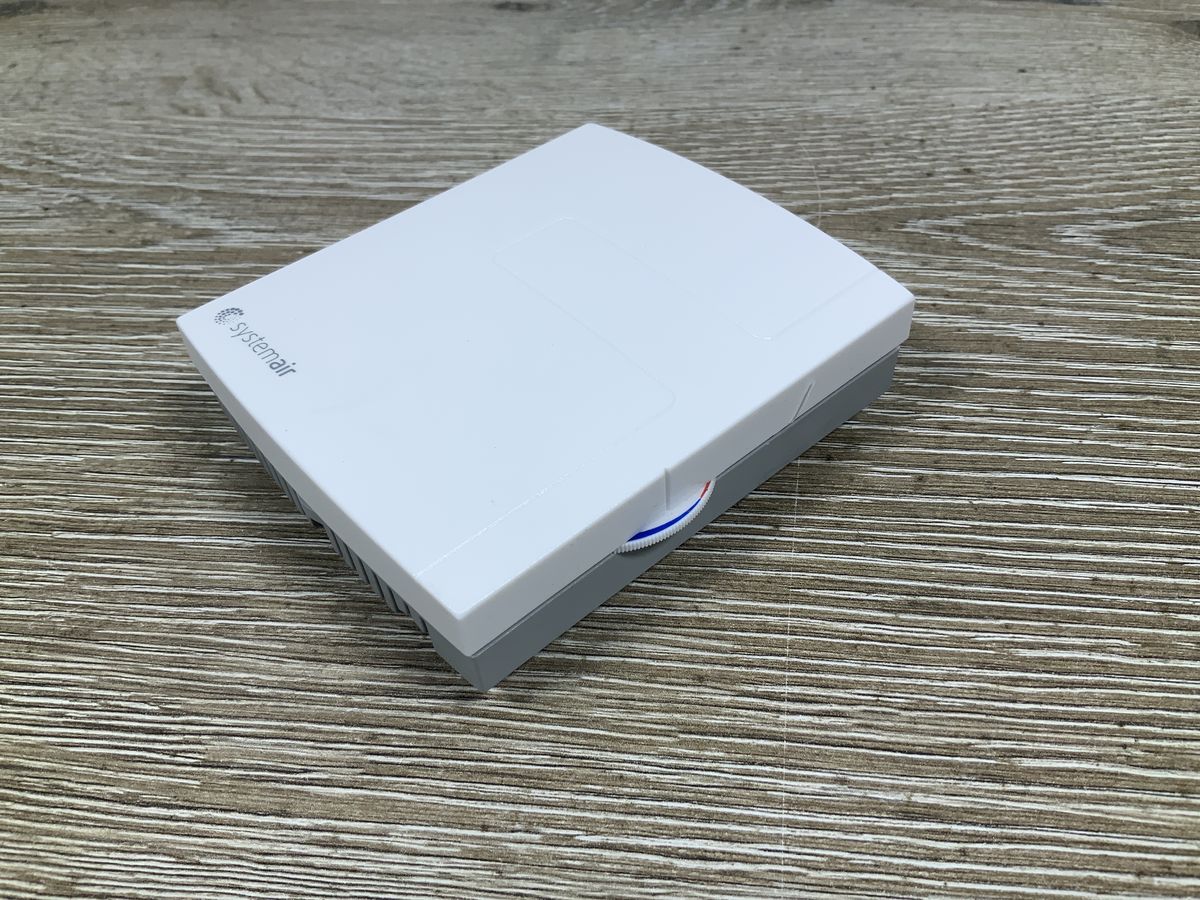

The Systemair EC-BASIC-T is a wall-mounted room temperature controller designed to regulate EC fans via a 0–10 V proportional-integral output signal. It compares actual room temperature against an adjustable temperature setpoint (5 to 30 °C) using an integrated sensor. Powered by a universal 110–240 V AC supply, it features configurable heating/cooling action and IP30 protection.

Specifications – EC-BASIC-T

Parameter Specification
Supply Voltage 110-240 V AC, 50/60 Hz
Power Consumption 0.46 W
Output Signal 0-10 V DC (max. 1 mA)
Working Temperature Range 0 - 50 °C
Setpoint Range 5 - 30 °C
Protection Class IP30
Dimensions 88 x 100 x 30.5 mm
Manufacturer Systemair (datasheet)
Part Number 24805 (datasheet)
Product Name EC-Basic-T temperature (datasheet)
Rated Voltage 110 to 240 V (datasheet)
Nominal Voltage 230 V (datasheet)
Frequency 50/60 Hz (datasheet)
Temperature Range -20 to 50 °C (datasheet)
Temperature Setpoint 5 to 30 °C (datasheet)
Enclosure Class IP30 (datasheet)
Dimensions (L x W x H) 88 x 100 x 30.5 mm (datasheet)
Weight 0.135 kg (datasheet)
×
