Regulators

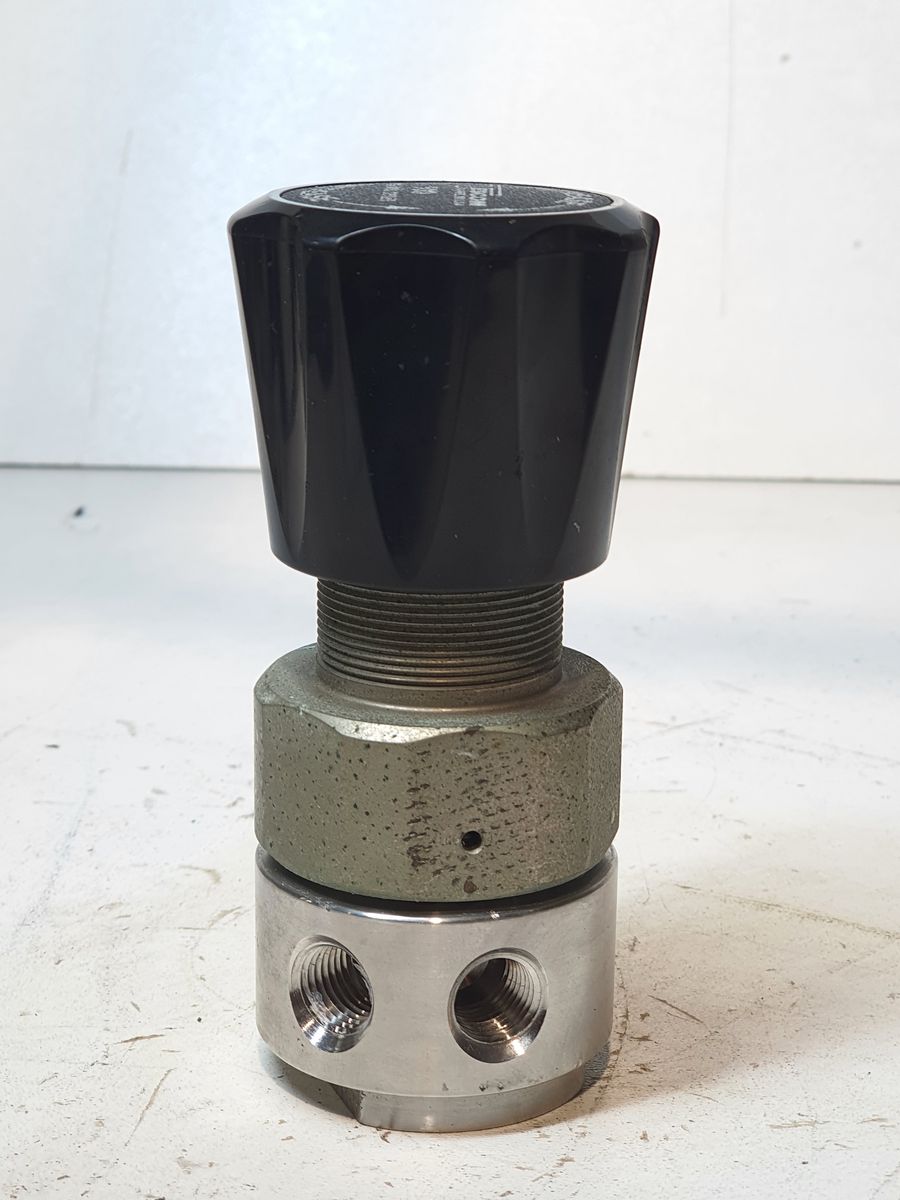

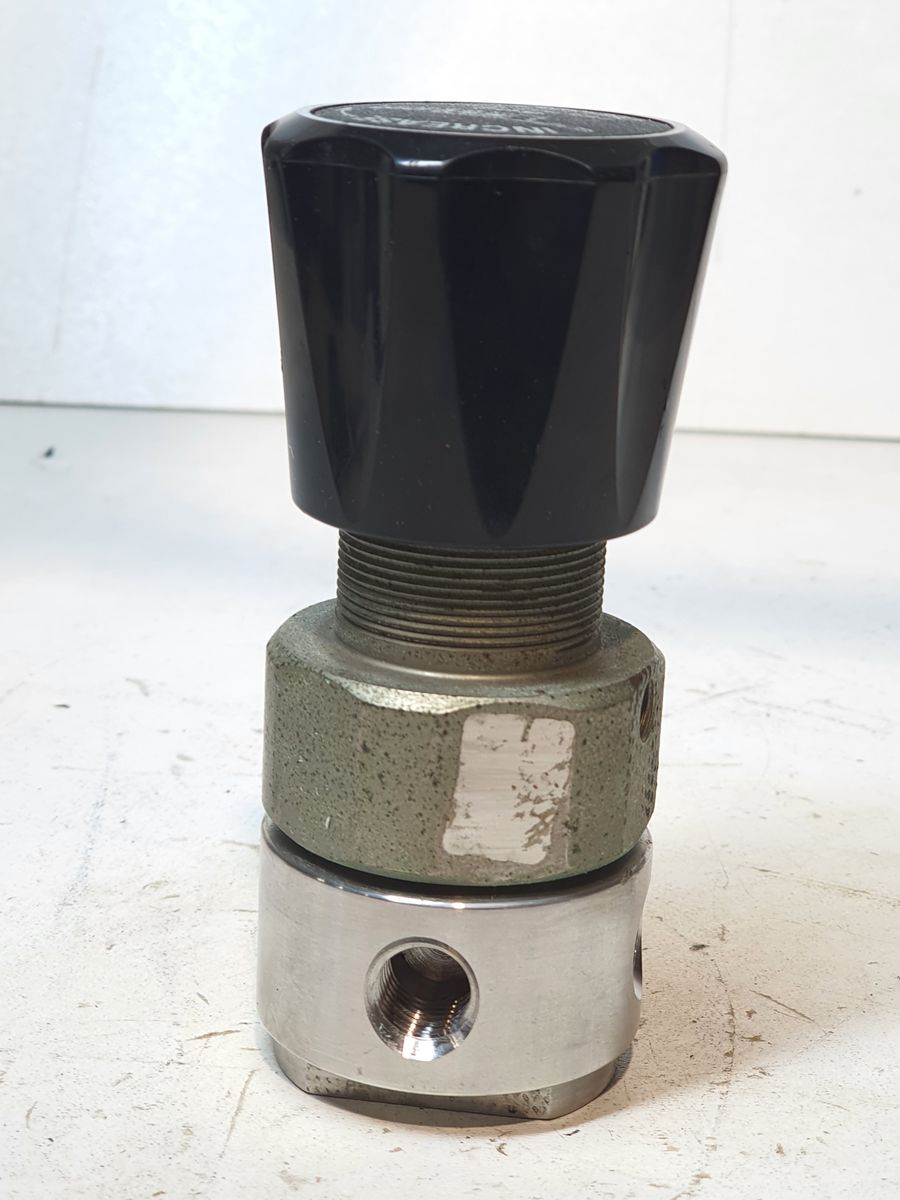

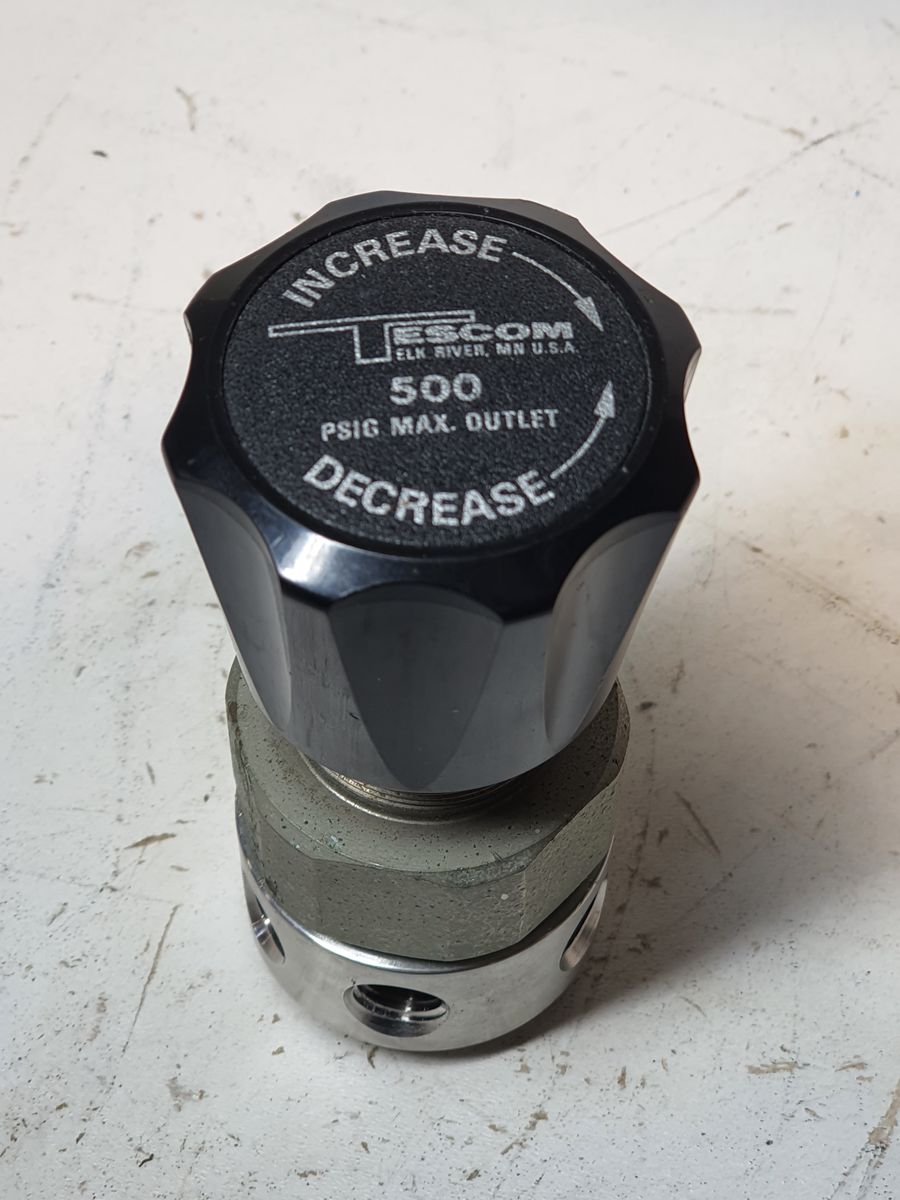

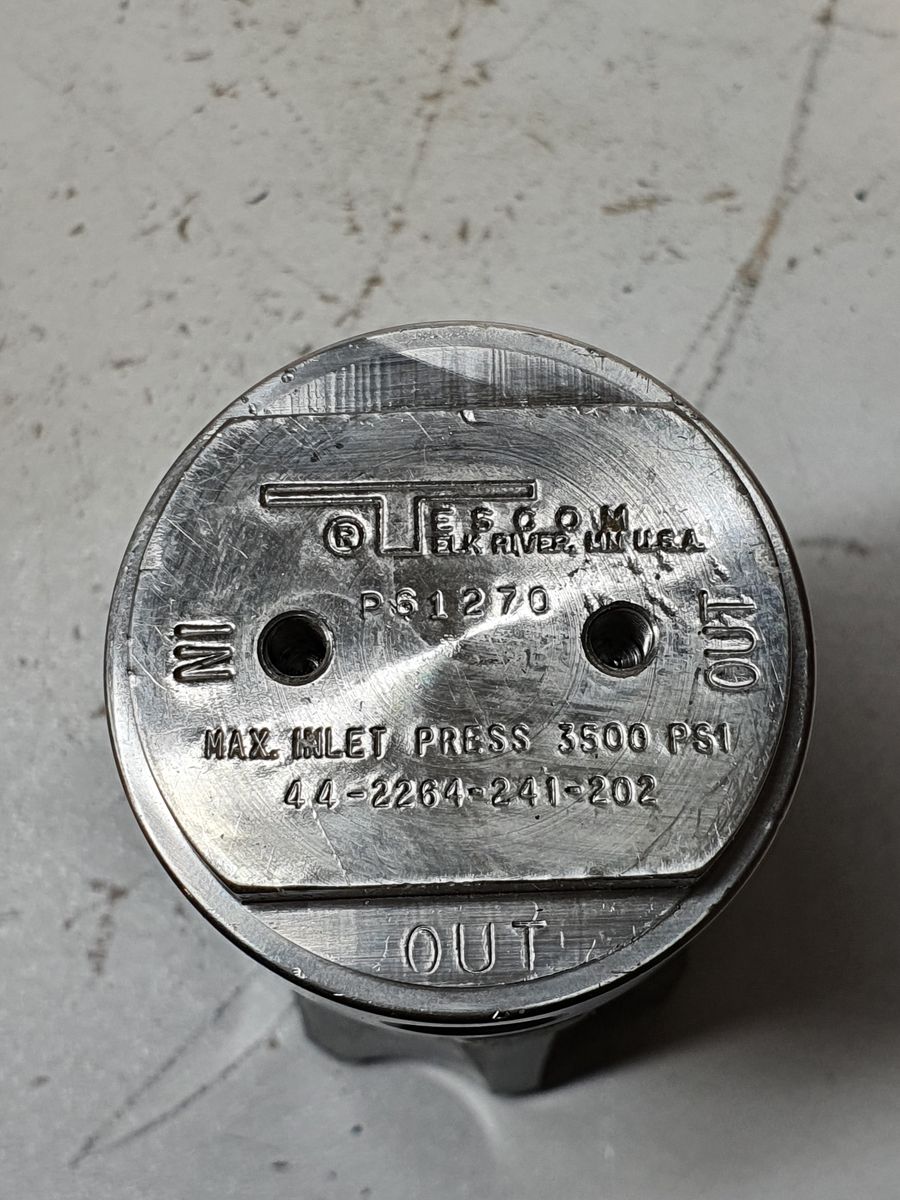

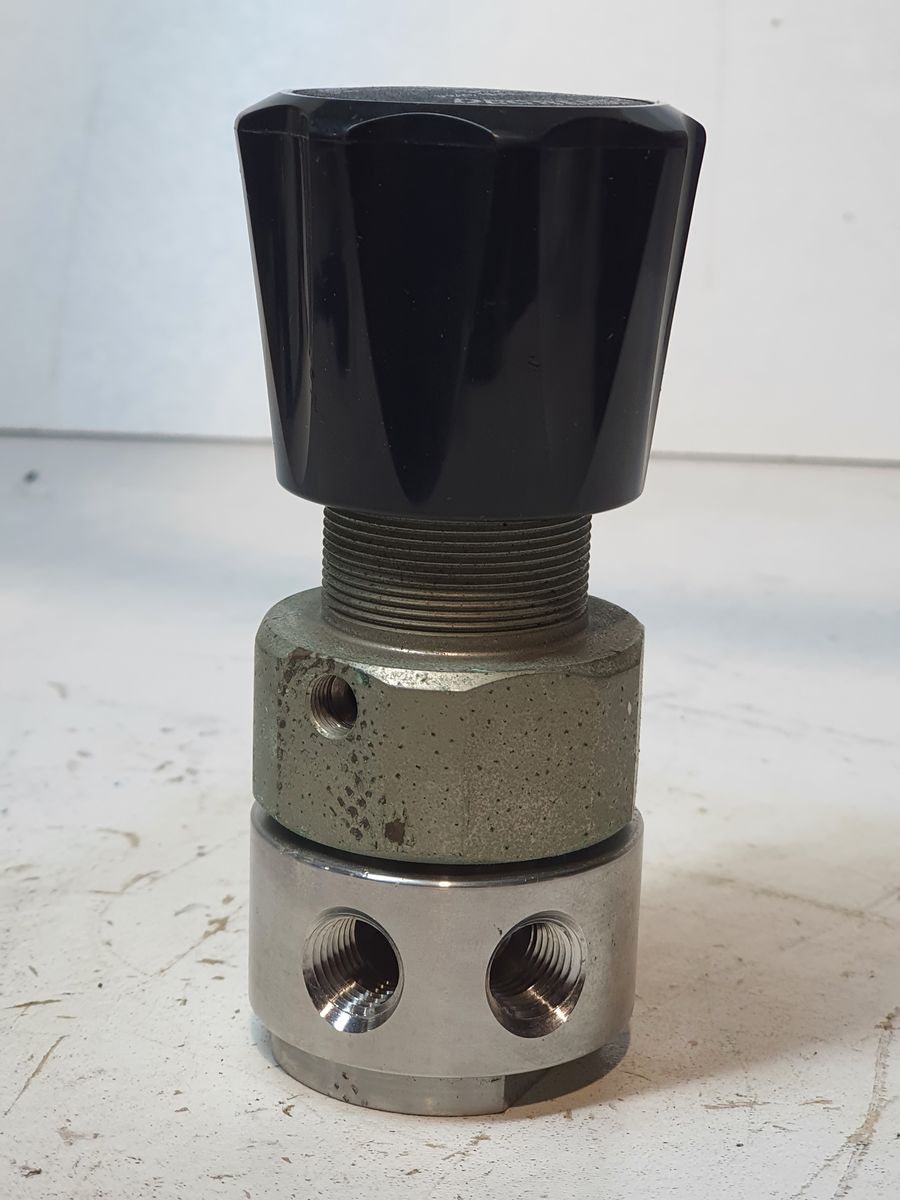

Tescom 44-2264-241-202
SKU: 8021
In Stock
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
TESCOM 44-2264-241-202
Specification Table
| Parameter | Details |
|---|---|
| Series | TESCOM 44-2200 Series Single Stage Regulator |
| Model / Part Number | 44-2264-241-202 |
| Function | Pressure Reducing (Single Stage) Regulator |
| Maximum Inlet Pressure | 3500 psig / 241 bar (high-pressure version) |
| Outlet Pressure Range | 0–500 psig / 0–34.5 bar |
| Design Proof Pressure | 150 % of maximum rated pressure |
| Leakage | Internal: Bubble-tightExternal: Designed to meet ≤ 2 × 10⁻⁸ atm cc/sec He |
| Operating Temperature | –40 °F to 165 °F / –40 °C to 74 °C |
| Flow Capacity (Cv) | 3500 psig inlet: Cv = 0.06400 psig inlet: Cv = 0.15 |
| Maximum Operating Torque | 30 in-lbs / 3.4 N·m |
| Body Material | 316L Stainless Steel |
| Bonnet Material | 300 Series Stainless Steel |
| Diaphragm Materials | 316 Stainless Steel |
| Seat Material | PTFE |
| Remaining/Internal Parts | 316 Stainless Steel |
| Port Size & Type | 1/4″ NPTF inlet & outlet |
| Cleaning | CGA 4.1 and ASTM G93 (intermediate cleaning) |
| Internal Volume | Approx. 6 cc |
| Weight (without gauges) | ~2 lbs / 0.9 kg |
×
![]()
