Tescom 44-236X-24
SKU: 8012
Out of Stock

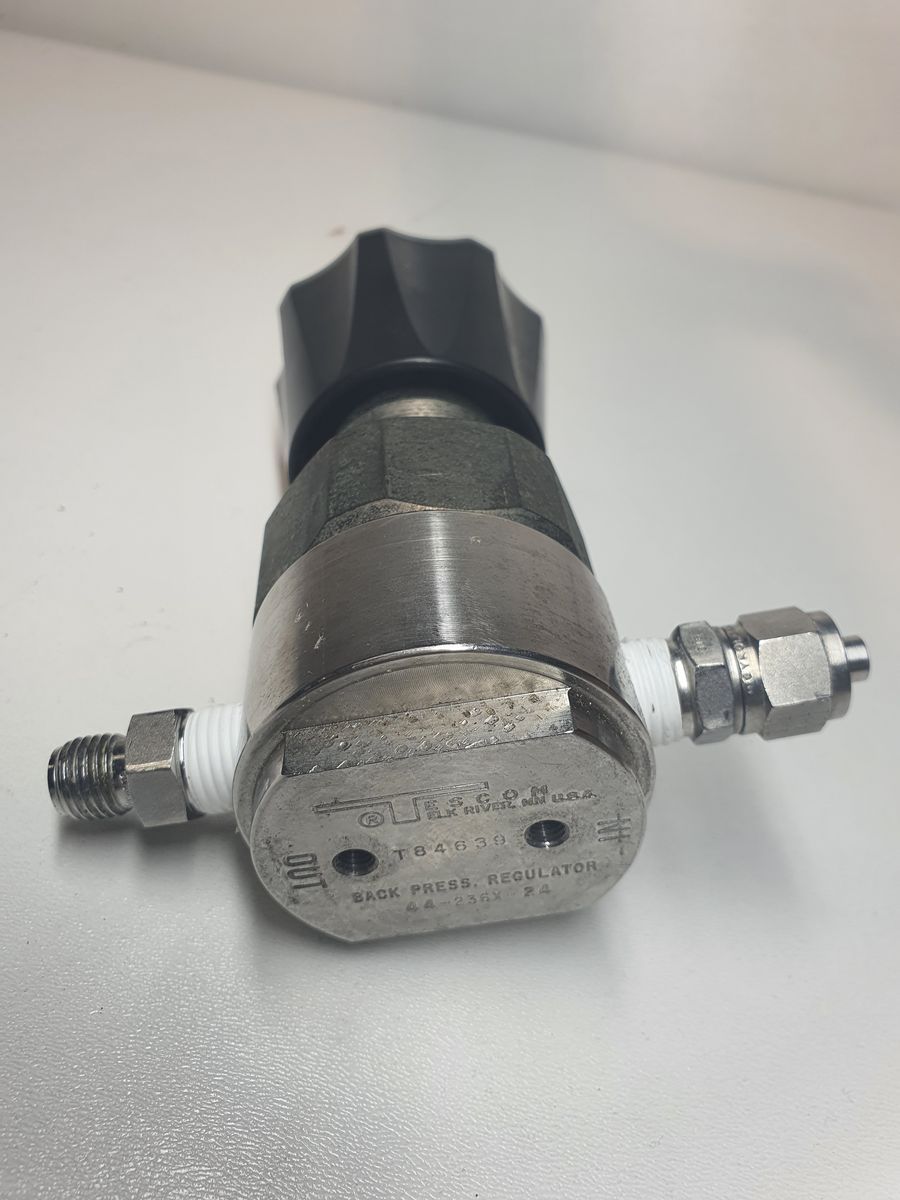

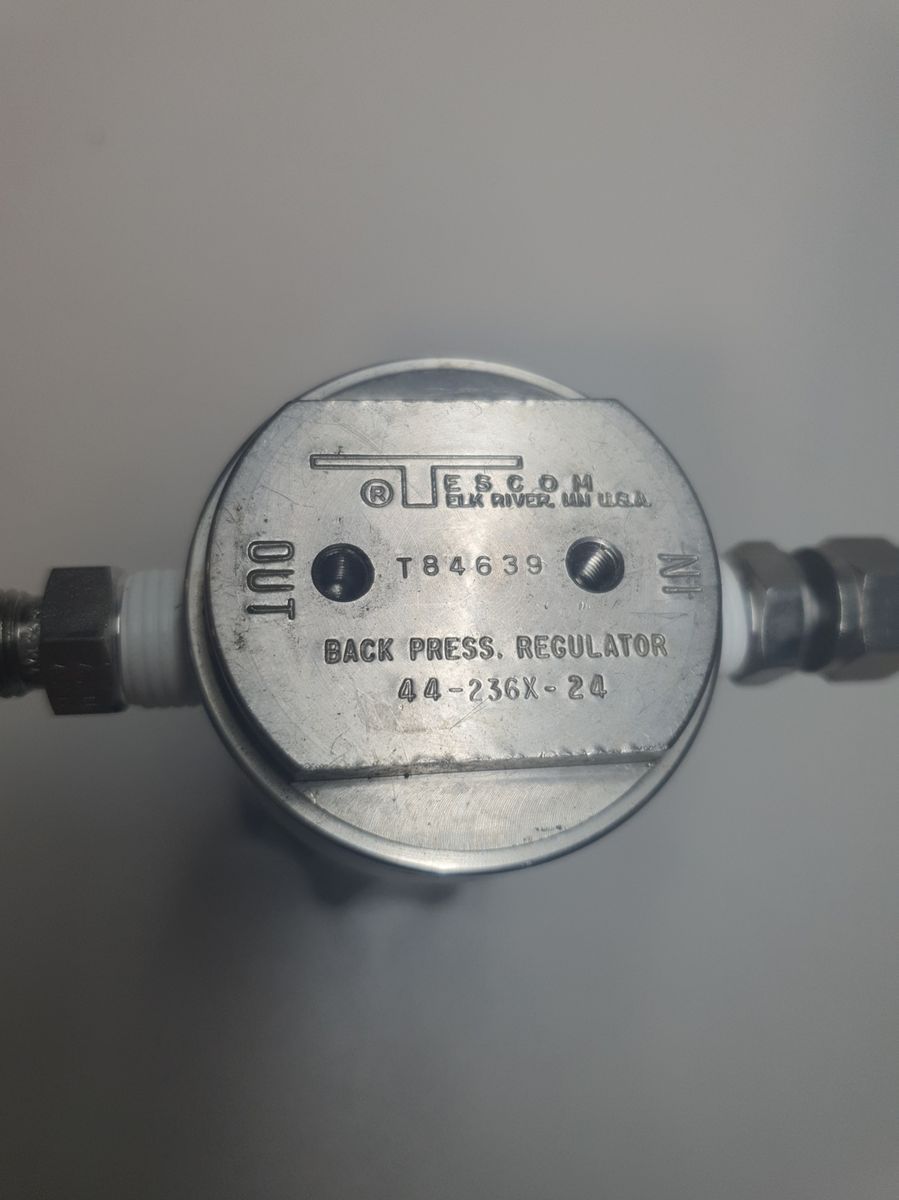

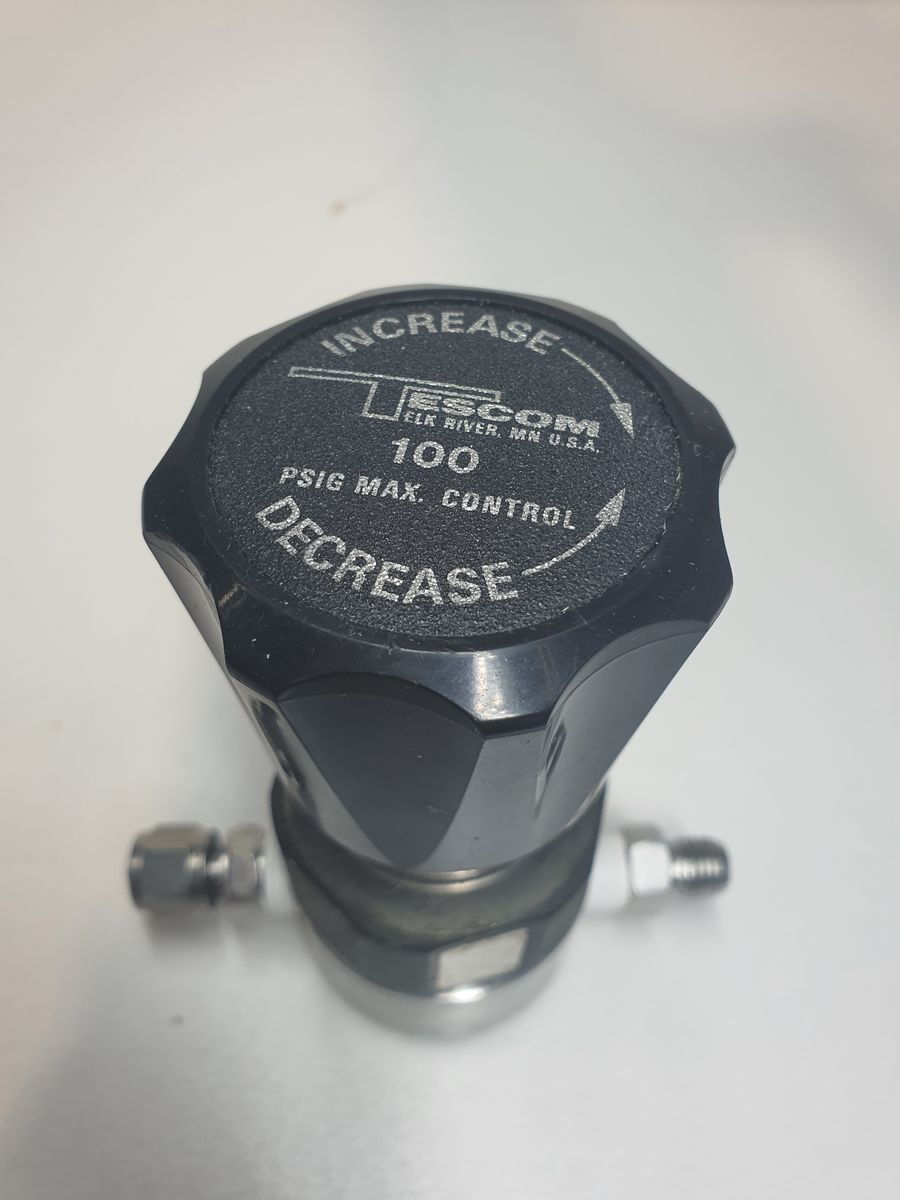

Tescom 44-236X-24 tegendrukregelaar
| Category | Parameter |
|---|---|
| Manufacturer | Tescom (Emerson) |
| Series | 44-2300 Single-Stage Back-Pressure Regulator |
| Model | 44-236X-24 |
| Regulator Type | Single-stage back-pressure regulator |
| Outlet Pressure Range | 0–100 psig (0–6.9 bar) |
| Flow Coefficient | Cv = 0.08 |
| Port Size / Type | 1/4″ NPTF (inlet and outlet) |
| Design Pressure | 150 % of maximum rated pressure |
| Leakage | Internal: bubble-tightExternal: < 2 × 10⁻⁸ atm cc/sec He |
| Operating Temperature Range | −40 °F to +140 °F (−40 °C to +60 °C) |
| Body Material | 316 Stainless Steel |
| Bonnet / Cover Material | 316 Stainless Steel |
| Seat Material | CTFE / PCTFE |
| Diaphragm Material | 316 Stainless Steel or Elgiloy |
| Weight | ~0.9 kg |
×
![]()
